Pygenomeviz is a powerful genome visualiser with a high degree of flexibiliity and customisability. Using SARS-COV HKU 1 (Accession: AY597011) as toy data, here is how to plot a sample genome in GenBank format.

Coronavirus is used as a toy example because of its simplicity and small genome size, but pygenomeviz can easily handle much larger genome segments.

Prerequisite

• Python >= 3.9

Installation

pip install pygenomeviz

Usage

1. Import package and set genomeviz object

    from pygenomeviz import GenomeViz
    from pygenomeviz.parser import Genbank
    gv = GenomeViz()


2. Assuming your GenBank file is in the same directory with the name AY597011.gb.

    gbk = Genbank("./AY597011.gb")


3. Set plot track + segment regions

   Segment size is set to 30000 because the genome region is about 30kb-ish. In practice you’d probably want to set it to something like np.ceil(len(sequence_string)).

    gv = GenomeViz(fig_track_height=0.5)
    gv.set_scale_xticks(start=0)

    track = gv.add_feature_track(name="AY597011", segments=(0, 30000))
    track.add_sublabel()
    segment = track.get_segment()


4. Plot the genome using “CDS” as genome regions and “gene” as the names. Again, in practice you’d probably want to colour different gene based on the gene_name or other identifier. I use an orange colour just as an example.

    for feature in gbk.extract_features("CDS", target_range=segment.range):
        gene_name = str(feature.qualifiers.get("gene", [""])[0])
        segment.add_features(feature, plotstyle="bigarrow", color="tomato", label_type="gene")

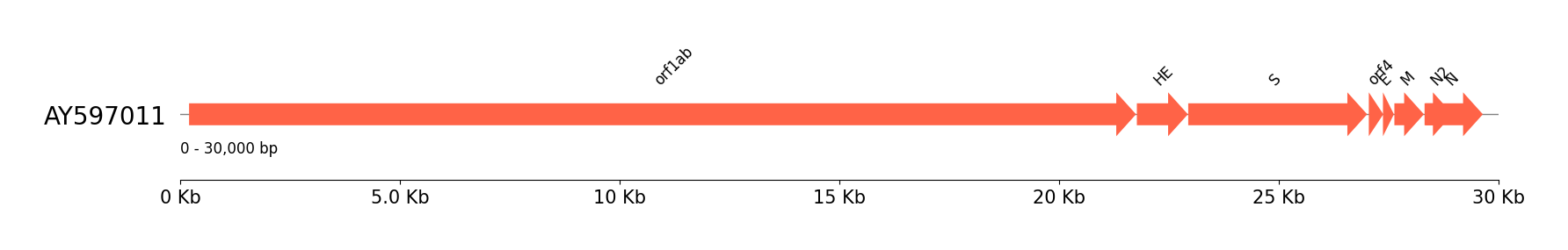

5. Plot and Save.

    fig = gv.plotfig()
    gv.savefig("./AY597011.png")
